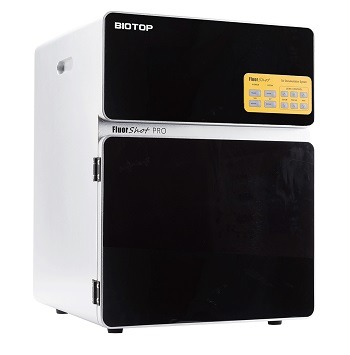

Lab Cell Cultivation & Analytical Instruments - UV-VIS Gel Imaging & Documentation System

Model: FluorShot PRO II Origin：China

Equipment introduction

FluorShot PRO II SC850 Gel Documentation System uses 5 megapixels professional high definition black/white CCD. Effective resolution is 2592*1944, SNR is 70db, pixel density is 12 bit, CCD acquisition system with two USB ports,

sensitivity of gel documentation in low-light level.

The system has UV automatic protection function. UV lamp automatically switches off when you are handling samples or it can enter to the glue cutting state and work

with special protecting glue cutting device for worker`s safety.

The top of the system can be easily open for changing filters and different fluorescent stains.

For standard 590nm filter you can use EB and GelRed stains, if you want to use other, please, contact us for changing hardware.

Main features

More models are available.

CE certification, more reliable.

Delicate computer, easy-moving, system noise is low.

Darkroom with mold production, enclosed camera, built-in acquisition system, dustproof.

Detection sensitivity: 20pg of double-stranded DNA.

Large area of UV transmission station, the biggest sample can be 21x26cm

Wavelength of UV Trans and Reflect: standard 312nm，254/365nm are available.

The most safety UV glue cutting device.
